My HAM SHACK

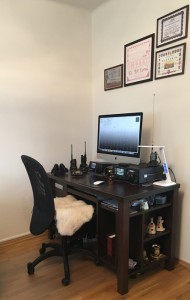

MY HAM SHACK
MY ANTENA SYSTEM
MY TRANSCEIVER

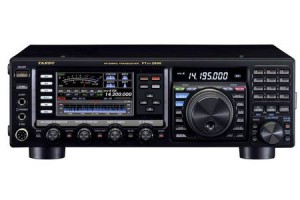

YAESU FTDX 3000D
http://www.rigpix.com/yaesu/ftdx3000.htm

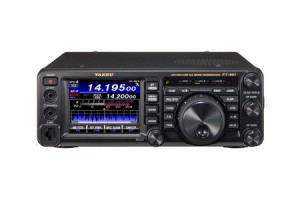

YAESU FT 991
http://www.rigpix.com/yaesu/ft991.htm

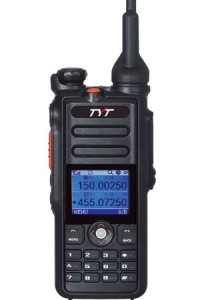

TYT MD-2017 Dual Band DMR Digital Radio Unboxing
TYT MD-2017 Features
- 3000 Channels
- 400-480MHz UHF Frequencies
- 136-174MHz VHF Frequencies
- Built-in CTCSS/DCS (Analog Mode)
- 5W/1W Output Power
- Repeater Capable
- Uses Li-ion Rechargeable Battery Packs
- Rechargeable Li-ion Battery Pack Included
- Includes Charger
- Emergency Alarm
- VOX
- Encryption (Digital Mode Only)
- Private Call/Group Call/All Call
- Cloning Capable
- Text Messaging
- Lone Worker Mode
- LED Status Light
- Color LCD Display
- Lighted DTMF Keypad and Trackball
- Hi/Low Power Selectable
- Signal Strength Indicator
- Battery Meter
- Low Battery Alert
- Battery Saver
- Programmable Multifunction Keys
- PC Programmable (Optional Software and Cable Required)
- Timeout Timer
- Keypad Lock
- Audible Button Beeps
- Clock
- Drop-In Charge Capable
- IP67 Waterproof
- Submersible
- Audio Accessory Connector
- DMR
- Stun/Kill/Activate
- One Year Manufacturer Warranty

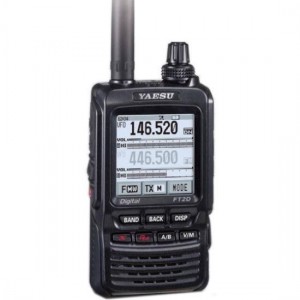

YAEST FT2DE
http://www.rigpix.com/yaesu/ft2de.htm

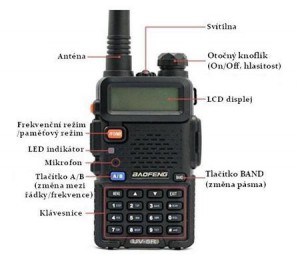

BAIFENG UV-5RB
http://www.rigpix.com/baofeng/uv5r.htm

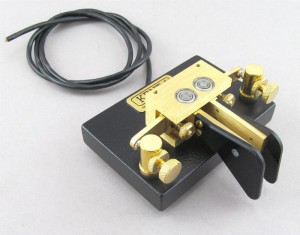

CW KEY KENT
http://www.kent-engineers.com/TWINinfo.htm

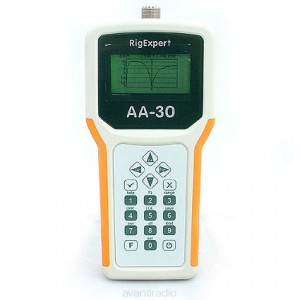

RIG EXPERT AA-30
https://rigexpert.com/products/antenna-analyzers/aa-30/

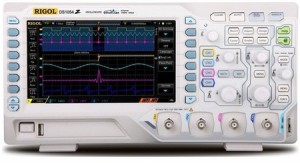

Osciloscop Rigol 1054 ( 4 x 50 MHz )
https://www.rigol-uk.co.uk/Rigol-DS1054Z-Digital-Oscilloscope-p/ds1054z.htm

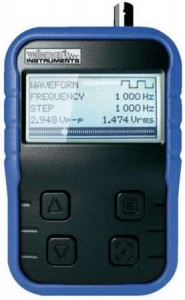

Generator HPG1
https://www.velleman.eu/products/view/?id=398568

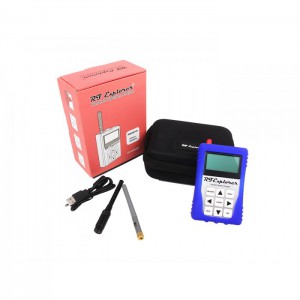

RF Explorer WSUB1G+ (SEEED 114991051)
50KHz-1GHz digital spectrum analyzer
https://j3.rf-explorer.com/menu-the-news/195-rf-explorer-wsub1g-plus-50khz-960mhz

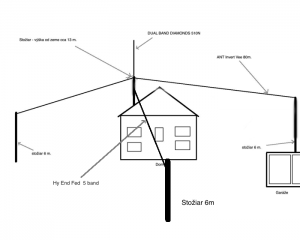

Antena systém

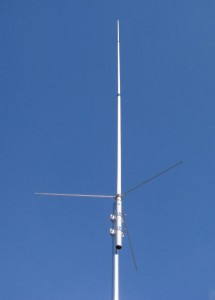

X-510 N , dual-anténa 144/430MHz, délka 5,2m

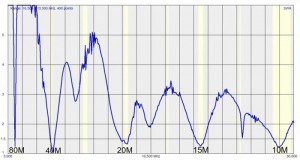

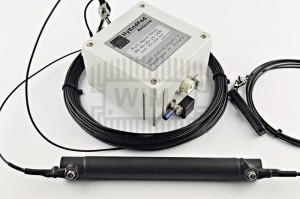

Hy And Fed 5 band
https://www.wimo.com/hyendfed-wire-antennas_e.html

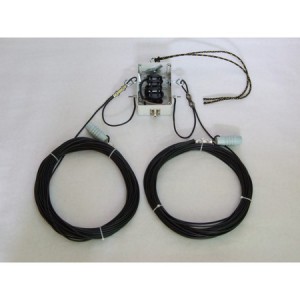

Antena Dipol 80M 300 Watt

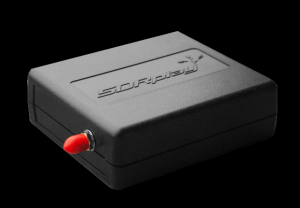

SDR Play RSP-1A
https://www.youtube.com/watch?v=juTdBpTDVp0
The SDRplay RSP1A is a major upgrade to the popular RSP1. It is a powerful wideband full featured 14 bit SDR which covers the RF spectrum from 1kHz to 2GHz.
All it needs is a PC and an antenna to provide excellent communications receiver functionality. Combined with the power of readily available SDR receiver software (including SDRuno supplied by SDRplay) you can monitor up to 10MHz of spectrum at a time.
Documented API allows developers to create new demodulators or
applications around the platform.
Features :
- Covers all frequencies from 1kHz through LF, MW, HF, VHF, UHF and Lband to 2GHz, with no gaps
- Excellent dynamic range for challenging reception conditions
- Low levels of spurious responses
- Works with all the popular SDR software (including HDSDR, SDR Console, Cubic SDR and SDRuno)
- ExtIO based plugin available
- Software upgradeable for future standards
- Strong and growing software support network
- API provided to allow demodulator or application development
- Multiplatform driver and API support including Windows, Linux, Mac, Android and Raspberry Pi 2/3
- Up to 16 individual receivers in any 10MHz slice of spectrum using SDRuno
- Calibrated S meter and power measurements with SDRuno
- Ideal for monitoring of ISM/ IoT/ Telemetry bands <2GHz
- Ideal for portable operation
- Continuous coverage from 1kHz to 2GHz
- Up to 10MHz visible bandwidth
- Powers over the USB cable with a simple type B socket
- 14 bit ADC silicon technology (not another 8 bit dongle!)
- 11 high selectivity, built in frontend preselection filters
- Software selectable AM/FM and DAB broadcast band notch filters
- Software selectable multi level Low Noise Preamplifie
- BiasT power supply for powering antenna mounted LNA
- RF shielding layer inside case
- SDRuno World Class SDR software for Windows
- Documented API for new apps development
- Single SMA antenna socket covering entire frequency range
Read more: https://www.nevadaradio.co.uk/amateur-radio/sdr-radio/sdr-play-rsp-1a#ixzz5qNQGQjAb

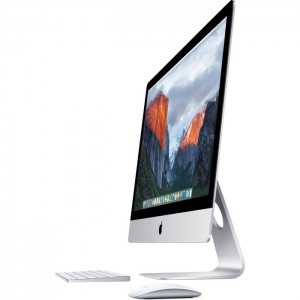

iMac 27 / 16 Gb RAM

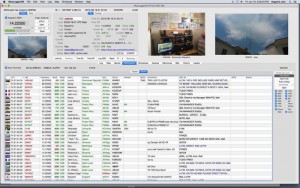

Software MacLoggerDX
https://dogparksoftware.com/MacLoggerDX.html
